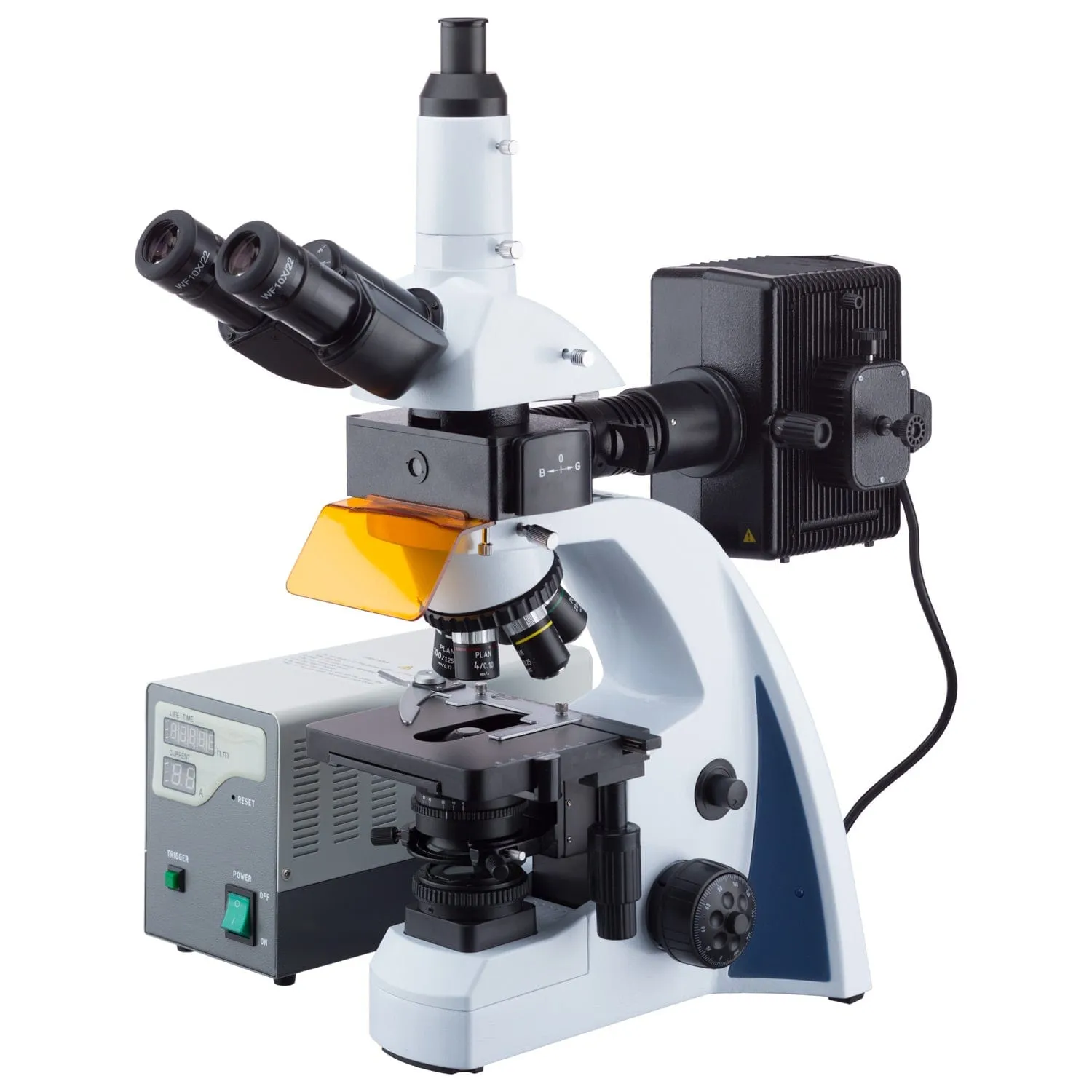

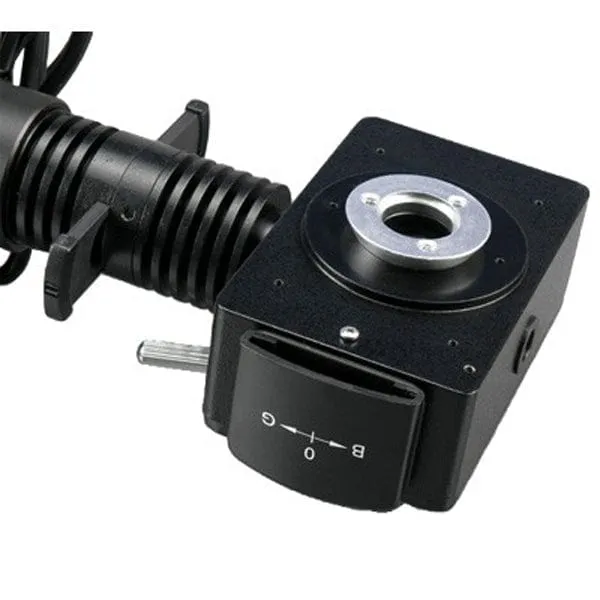

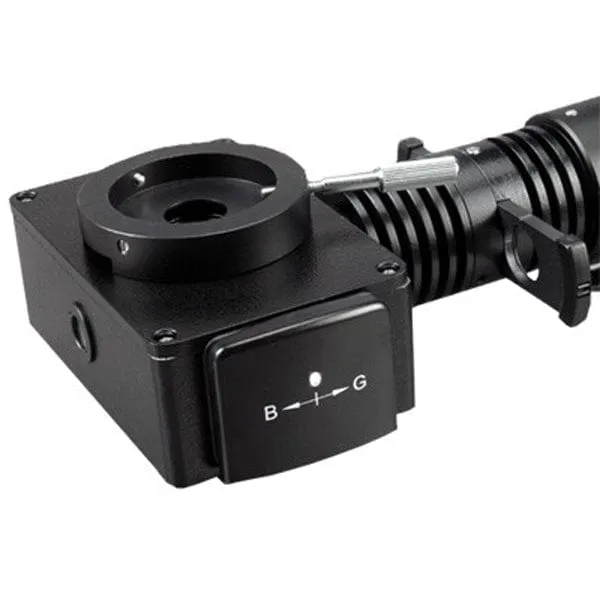

This is fluorescence epi-illumination system for compound microscopes. The system includes a 100W wide-spectrum mercury lamp, and green and blue filter blocks. Compatible with B390, T390, B600, T600, and T670 compound microscopes.
Features & Specifications:
A complete EPI-fluorescent kit
100W HBO ultra hi-voltage spherical mercury lamp
Blue & green excitation
Three-position fluorescent filter slider assembly for blue, green, and brightfield microscopy
220V/110V (Interchangeable) external digital power supply (100W DC)
Easy control design for centering arc of the mercury lamp
Fluorescent light condenser with moving-control knob
Fluorescent light field diaphragm with centering control adjustment
Three-setting fluorescence excitation light path control dial: no light, partial light, full light
Ultraviolet-blocking eye-shield included
Excitation Filters: 490nm (blue), 545nm (green)
Dichroic Mirrors: 510nm (blue), 580nm(green)
Barrier Filters: 530nm (blue), 590nm (green)
Manufactured under ISO 9001 Quality Control Standard
Net Weight: 22 lbs
Shipping Weight: 30 lbs

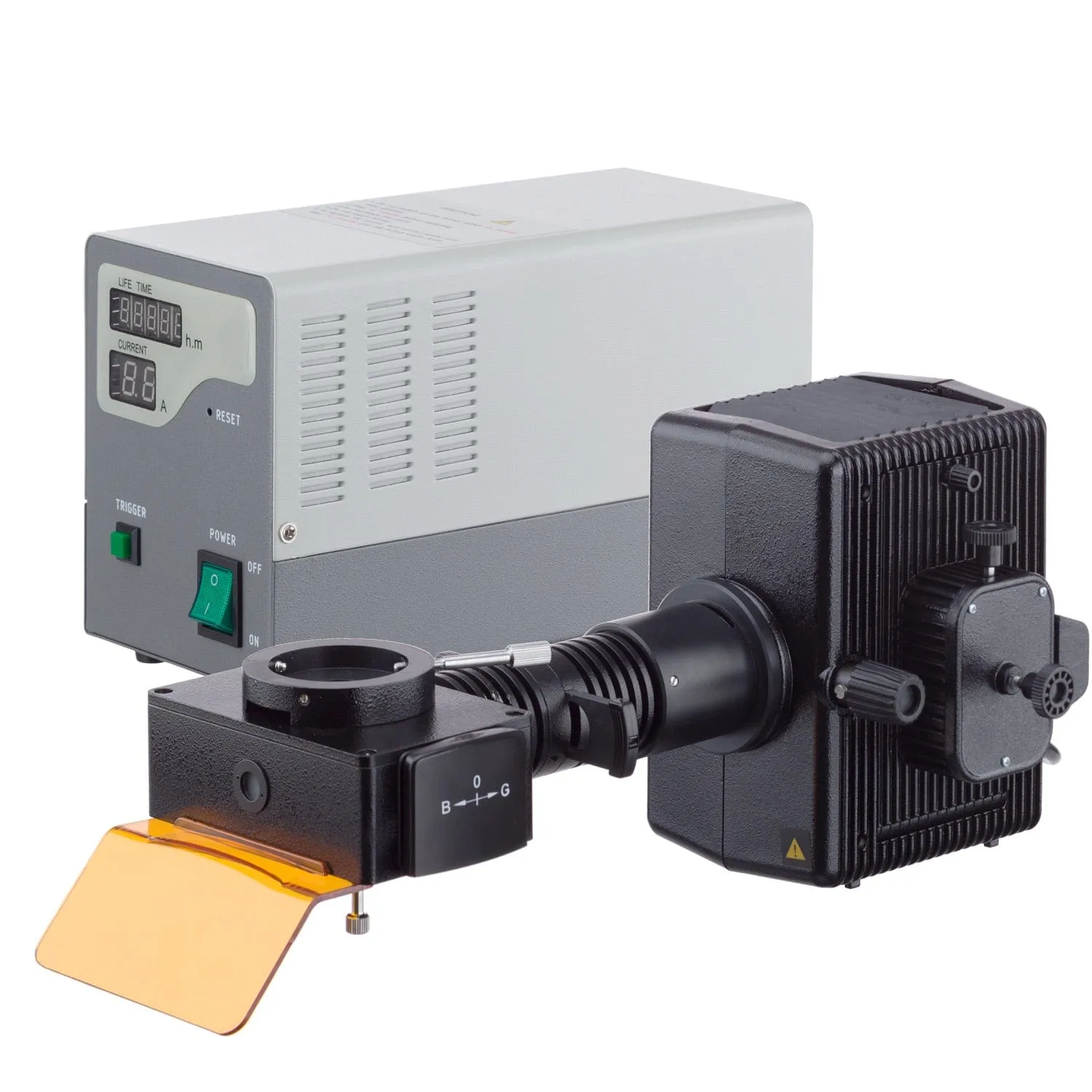

Contents:
One episcopic illuminator with blue and green filters
One 100W power supply
Two mercury-vapor bulbs
Two fuses
One UV-blocking eye-shield
One power cord
Optional Accessories :
UV filter system
Auxiliary exciting filter: EX450-490
